- 6" x 12" PFA Gripper Pad: Knurled 70 Durometer (FKM-Orange) Rubber Pad with 316 Stainless Steel Backplate
6″ x 12″ PFA Gripper Pad: Knurled 70 Durometer (FKM-Orange) Rubber Pad with 316 Stainless Steel Backplate
$320.00
6″ x 12″ PFA Gripper Pad, Knurled Surface, with 316 Stainless Steel Backing. Dimensions nominal – see dimensional chart on the tab below for tolerance details.
This product replaces GP-508-1A-6.0-12.0. Contact PFA for details.
In Stock
SKU: GP-578-1A-6.0-12.0
Categories: Browse All Gripper Pads, Stocked Item Tags: gripper pad, knurled, stainless steel
Categories: Browse All Gripper Pads, Stocked Item Tags: gripper pad, knurled, stainless steel
Dimensional Chart
Item Details
Dimensional Chart
Click the part number in the chart below to view that specific pad in our store.
Dimensions mm (inches)
Part No. | Surface | Length A** mm (inch) | Width B** mm (inch) | Overall Thickness C mm (inch) | Pad Thickness D mm (inch) | Plate Thickness E mm (inch) | Durometer*** ±5 Shore A | Elastomer*** | Plate Material*** |
---|---|---|---|---|---|---|---|---|---|
GP-702-1A-1.2-1.2 | Knurled | 30.48 (1.2) | 30.48 (1.2) | 13.5 (0.53) | 10.2 (0.40) | 3.3 (0.13) | 60 | NBR-BunaN (Black) | Carbon Steel |
GP-702-1A-6.0-12.0 | Knurled | 304.8 (12.0) | 152.4 (6.0) | 13.5 (0.53) | 10.2 (0.40) | 3.3 (0.13) | 60 | NBR-BunaN (Black) | Carbon Steel |
GP-704-1A-1.2-1.2 | Knurled | 30.48 (1.2) | 30.48 (1.2) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 60 | NBR-BunaN (Black) | Aluminum |
GP-704-1A-6.0-12.0 | Knurled | 304.8 (12.0) | 152.4 (6.0) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 60 | NBR-BunaN (Black) | Aluminum |
GP-706-1A-6.0-12.0* | Knurled | 304.8 (12.0) | 152.4 (6.0) | – | 6.4 (0.25) | – | 60 | NBR-BunaN (Black) | Elastomer Only** |
GP-706-2A-6.0-12.0* | Knurled | 304.8 (12.0) | 152.4 (6.0) | – | 3.3 (0.13) | – | 60 | NBR-BunaN (Black) | Elastomer Only** |
GP-154-1A-1.2-1.2 | Knurled | 30.48 (1.2) | 30.48 (1.2) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 50 | SI-Silicone (Blue) | Aluminum |
GP-154-1A-6.0-12.0 | Knurled | 304.8 (12.0) | 152.4 (6.0) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 50 | SI-Silicone (Blue) | Aluminum |
GP-334-1A-1.2-1.2 | Knurled | 30.48 (1.2) | 30.48 (1.2) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 30 | CR-Neoprene (Brown) | Aluminum |
GP-334-1A-6.0-12.0 | Knurled | 304.8 (12.0) | 152.4 (6.0) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 30 | CR-Neoprene (Brown) | Aluminum |
GP-574-1A-1.2-1.2 | Knurled | 30.48 (1.2) | 30.48 (1.2) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 70 | FKM-Viton® (Orange) | Aluminum |
GP-574-1A-6.0-12.0 | Knurled | 304.8 (12.0) | 152.4 (6.0) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 70 | FKM-Viton® (Orange) | Aluminum |
GP-578-1A-6.0-12.0 | Knurled | 304.8 (12.0) | 152.4 (6.0) | 13.5 (0.53) | 10.2 (0.40) | 3.3 (0.13) | 70 | FKM-Viton® (Orange) | 316 Stainless |
GP-742-1A-1.2-1.2 | Knurled | 304.8 (12.0) | 152.4 (6.0) | 13.5 (0.53) | 10.2 (0.40) | 3.3 (0.13) | 45 | NBR-BunaN (Black) | Carbon Steel |
GP-742-1A-6.0-12.0 | Knurled | 304.8 (12.0) | 152.4 (6.0) | 13.5 (0.53) | 10.2 (0.40) | 3.3 (0.13) | 45 | NBR-BunaN (Black) | Carbon Steel |
GP-744-1A-1.2-1.2 | Knurled | 30.48 (1.2) | 30.48 (1.2) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 45 | NBR-BunaN (Black) | Aluminum |
GP-744-1A-6.0-12.0 | Knurled | 304.8 (12.0) | 152.4 (6.0) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 45 | NBR-BunaN (Black) | Aluminum |
GP-701-1-1.2-1.2 | Waffled | 30.48 (1.2) | 30.48 (1.2) | 13.5 (0.50) | 10.2 (0.37) | 3.3 (0.13) | 60 | NBR-BunaN (Black) | Carbon Steel |
GP-701-1-6.0-12.0 | Waffled | 304.8 (12.0) | 152.4 (6.0) | 12.7 (0.50) | 9.4 (0.37) | 3.3 (0.13) | 60 | NBR-BunaN (Black) | Carbon Steel |
GP-703-1-1.2-1.2 | Waffled | 30.48 (1.2) | 30.48 (1.2) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 60 | NBR-BunaN (Black) | Aluminum |
GP-703-1-6.0-12.0 | Waffled | 304.8 (12.0) | 152.4 (6.0) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 60 | NBR-BunaN (Black) | Aluminum |
GP-705-1-6.0-12.0* | Waffled | 304.8 (12.0) | 152.4 (6.0) | – | 6.4 (0.25) | – | 60 | NBR-BunaN (Black) | Elastomer Only** |
GP-733-1-1.2-1.2 | Waffled | 30.48 (1.2) | 30.48 (1.2) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 35 | NBR-BunaN (Black) | Aluminum |
GP-733-1-6.0-12.0 | Waffled | 304.8 (12.0) | 152.4 (6.0) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 35 | NBR-BunaN (Black) | Aluminum |
GP-801-1-1.2-1.2 | Pebbled | 30.48 (1.2) | 30.48 (1.2) | 13.5 (0.53) | 10.2 (0.40) | 3.3 (0.13) | 60 | NBR-BunaN (Black) | Carbon Steel |
GP-801-1-6.0-12.0 | Pebbled | 304.8 (12.0) | 152.4 (6.0) | 13.5 (0.53) | 10.2 (0.40) | 3.3 (0.13) | 60 | NBR-BunaN (Black) | Carbon Steel |
GP-803-1-1.2-1.2 | Pebbled | 30.48 (1.2) | 30.48 (1.2) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 60 | NBR-BunaN (Black) | Aluminum |
GP-803-1-6.0-12.0 | Pebbled | 304.8 (12.0) | 152.4 (6.0) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 60 | NBR-BunaN (Black) | Aluminum |
GP-805-1-6.0-12.0* | Pebbled | 304.8 (12.0) | 152.4 (6.0) | – | 6.4 (0.25) | – | 60 | NBR-BunaN (Black) | Elastomer Only** |
GP-805-2-6.0-12.0* | Pebbled | 304.8 (12.0) | 152.4 (6.0) | – | 3.3 (0.13) | – | 60 | NBR-BunaN (Black) | Elastomer Only** |
*No metal plate **Elastomer only pads may show some dimensional contraction. Use A=11-5/8” and B=5-3/4” actual for planning on 6” x 12” pads and assume nominal A & B dimensions for all metal backed pads (+/- .050”), nominal thickness (+/-.020”), and nominal squareness for smaller sizes as these are cut from standard 6” x 12” pads. For custom machined sizes and make to print items, contact PFA. ***Durometer +/- 5 Shore A as shown. Polymer Type Abbreviations: CR = Neoprene (Chloroprene), NBR = Nitrile Butadiene Rubber (Buna-N), FKM = (Also FPM) High Temperature Fluoropolymer (Viton®), SI = Silicone (Polysiloxane), backing plate material is Aluminum (6061-T6), low carbon steel (10 gauge), or 316 Stainless Steel (or similar). |
Item Details
Weight | 4.438 lbs |
---|---|
Dimensions | 12 × 6 × 0.53 in |
Size | |
Metal Back Plate Material | |
Surface Texture | |
Durometer | |
Rubber Surface Material |
Related products

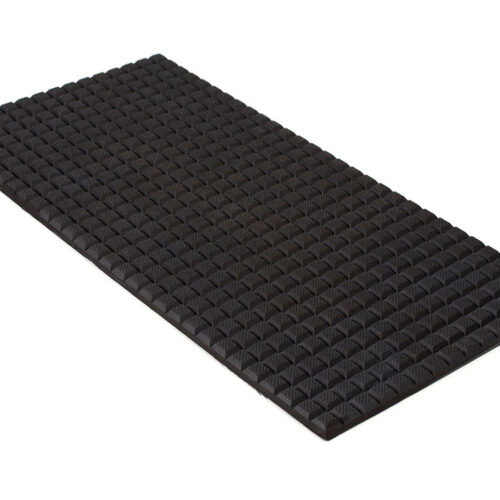

6” x 12” PFA Gripper Pad: Waffled 60 Durometer NBR Rubber Pad (Elastomer Only – 1/4″ thick)
