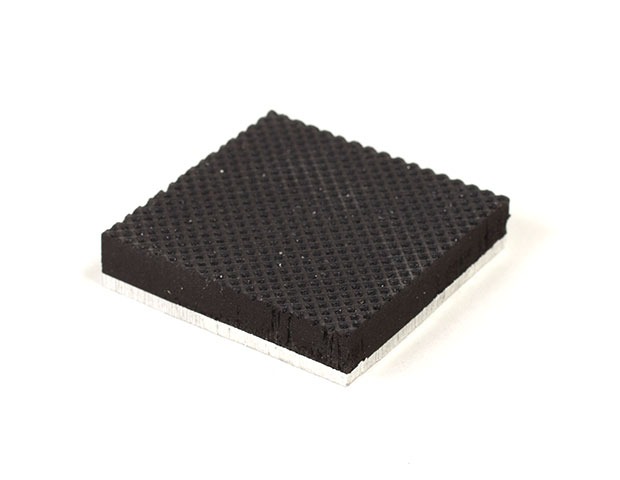

1.2” x 1.2” PFA Gripper Pad: Knurled 60 Durometer NBR Rubber Pad with Aluminum Backplate
$5.80
PFA Gripper Pad, Knurled Surface, with Aluminum Backing. Dimensions nominal – see dimensional chart on the tab below for tolerance details.
Dimensional Chart
Click the part number in the chart below to view that specific pad in our store.
Dimensions mm (inches)
| Part No. | Surface | Length A** mm (inch) | Width B** mm (inch) | Overall Thickness C mm (inch) | Pad Thickness D mm (inch) | Plate Thickness E mm (inch) | Durometer*** ±5 Shore A | Elastomer*** | Plate Material*** |
|---|---|---|---|---|---|---|---|---|---|
| GP-702-1A-1.2-1.2 | Knurled | 30.48 (1.2) | 30.48 (1.2) | 13.5 (0.53) | 10.2 (0.40) | 3.3 (0.13) | 60 | NBR-BunaN (Black) | Carbon Steel |
| GP-702-1A-6.0-12.0 | Knurled | 304.8 (12.0) | 152.4 (6.0) | 13.5 (0.53) | 10.2 (0.40) | 3.3 (0.13) | 60 | NBR-BunaN (Black) | Carbon Steel |
| GP-704-1A-1.2-1.2 | Knurled | 30.48 (1.2) | 30.48 (1.2) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 60 | NBR-BunaN (Black) | Aluminum |
| GP-704-1A-6.0-12.0 | Knurled | 304.8 (12.0) | 152.4 (6.0) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 60 | NBR-BunaN (Black) | Aluminum |
| GP-706-1A-6.0-12.0* | Knurled | 304.8 (12.0) | 152.4 (6.0) | – | 6.4 (0.25) | – | 60 | NBR-BunaN (Black) | Elastomer Only** |
| GP-706-2A-6.0-12.0* | Knurled | 304.8 (12.0) | 152.4 (6.0) | – | 3.3 (0.13) | – | 60 | NBR-BunaN (Black) | Elastomer Only** |
| GP-154-1A-1.2-1.2 | Knurled | 30.48 (1.2) | 30.48 (1.2) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 50 | SI-Silicone (Blue) | Aluminum |
| GP-154-1A-6.0-12.0 | Knurled | 304.8 (12.0) | 152.4 (6.0) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 50 | SI-Silicone (Blue) | Aluminum |
| GP-334-1A-1.2-1.2 | Knurled | 30.48 (1.2) | 30.48 (1.2) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 30 | CR-Neoprene (Brown) | Aluminum |
| GP-334-1A-6.0-12.0 | Knurled | 304.8 (12.0) | 152.4 (6.0) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 30 | CR-Neoprene (Brown) | Aluminum |
| GP-574-1A-1.2-1.2 | Knurled | 30.48 (1.2) | 30.48 (1.2) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 70 | FKM-Viton® (Orange) | Aluminum |
| GP-574-1A-6.0-12.0 | Knurled | 304.8 (12.0) | 152.4 (6.0) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 70 | FKM-Viton® (Orange) | Aluminum |
| GP-578-1A-6.0-12.0 | Knurled | 304.8 (12.0) | 152.4 (6.0) | 13.5 (0.53) | 10.2 (0.40) | 3.3 (0.13) | 70 | FKM-Viton® (Orange) | 316 Stainless |
| GP-742-1A-1.2-1.2 | Knurled | 304.8 (12.0) | 152.4 (6.0) | 13.5 (0.53) | 10.2 (0.40) | 3.3 (0.13) | 45 | NBR-BunaN (Black) | Carbon Steel |
| GP-742-1A-6.0-12.0 | Knurled | 304.8 (12.0) | 152.4 (6.0) | 13.5 (0.53) | 10.2 (0.40) | 3.3 (0.13) | 45 | NBR-BunaN (Black) | Carbon Steel |
| GP-744-1A-1.2-1.2 | Knurled | 30.48 (1.2) | 30.48 (1.2) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 45 | NBR-BunaN (Black) | Aluminum |
| GP-744-1A-6.0-12.0 | Knurled | 304.8 (12.0) | 152.4 (6.0) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 45 | NBR-BunaN (Black) | Aluminum |
| GP-701-1-1.2-1.2 | Waffled | 30.48 (1.2) | 30.48 (1.2) | 13.5 (0.50) | 10.2 (0.37) | 3.3 (0.13) | 60 | NBR-BunaN (Black) | Carbon Steel |
| GP-701-1-6.0-12.0 | Waffled | 304.8 (12.0) | 152.4 (6.0) | 12.7 (0.50) | 9.4 (0.37) | 3.3 (0.13) | 60 | NBR-BunaN (Black) | Carbon Steel |
| GP-703-1-1.2-1.2 | Waffled | 30.48 (1.2) | 30.48 (1.2) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 60 | NBR-BunaN (Black) | Aluminum |
| GP-703-1-6.0-12.0 | Waffled | 304.8 (12.0) | 152.4 (6.0) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 60 | NBR-BunaN (Black) | Aluminum |
| GP-705-1-6.0-12.0* | Waffled | 304.8 (12.0) | 152.4 (6.0) | – | 6.4 (0.25) | – | 60 | NBR-BunaN (Black) | Elastomer Only** |
| GP-733-1-1.2-1.2 | Waffled | 30.48 (1.2) | 30.48 (1.2) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 35 | NBR-BunaN (Black) | Aluminum |
| GP-733-1-6.0-12.0 | Waffled | 304.8 (12.0) | 152.4 (6.0) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 35 | NBR-BunaN (Black) | Aluminum |
| GP-801-1-1.2-1.2 | Pebbled | 30.48 (1.2) | 30.48 (1.2) | 13.5 (0.53) | 10.2 (0.40) | 3.3 (0.13) | 60 | NBR-BunaN (Black) | Carbon Steel |
| GP-801-1-6.0-12.0 | Pebbled | 304.8 (12.0) | 152.4 (6.0) | 13.5 (0.53) | 10.2 (0.40) | 3.3 (0.13) | 60 | NBR-BunaN (Black) | Carbon Steel |
| GP-803-1-1.2-1.2 | Pebbled | 30.48 (1.2) | 30.48 (1.2) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 60 | NBR-BunaN (Black) | Aluminum |

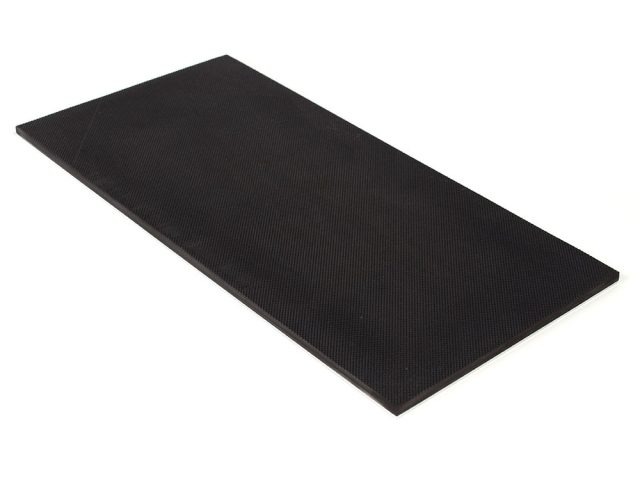

| GP-803-1-6.0-12.0 | Pebbled | 304.8 (12.0) | 152.4 (6.0) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 60 | NBR-BunaN (Black) | Aluminum |
| GP-805-1-6.0-12.0* | Pebbled | 304.8 (12.0) | 152.4 (6.0) | – | 6.4 (0.25) | – | 60 | NBR-BunaN (Black) | Elastomer Only** |
| GP-805-2-6.0-12.0* | Pebbled | 304.8 (12.0) | 152.4 (6.0) | – | 3.3 (0.13) | – | 60 | NBR-BunaN (Black) | Elastomer Only** |
| *No metal plate **Elastomer only pads may show some dimensional contraction. Use A=11-5/8” and B=5-3/4” actual for planning on 6” x 12” pads and assume nominal A & B dimensions for all metal backed pads (+/- .050”), nominal thickness (+/-.020”), and nominal squareness for smaller sizes as these are cut from standard 6” x 12” pads. For custom machined sizes and make to print items, contact PFA. ***Durometer +/- 5 Shore A as shown. Polymer Type Abbreviations: CR = Neoprene (Chloroprene), NBR = Nitrile Butadiene Rubber (Buna-N), FKM = (Also FPM) High Temperature Fluoropolymer (Viton®), SI = Silicone (Polysiloxane), backing plate material is Aluminum (6061-T6), low carbon steel (10 gauge), or 316 Stainless Steel (or similar). |
|||||||||
Item Details
| Weight | 0.016 lbs |
|---|---|
| Dimensions | 1.2 × 1.2 × 0.25 in |
| Size | |
| Metal Back Plate Material | |
| Surface Texture | |
| Durometer | |
| Rubber Surface Material |
