4″ x 8″ 3M VHB™ Adhesive Backing
$20.00
4″ x 8″ High Strength Mounting Adhesive Backed Foam by 3M. Dimensions nominal – see dimensional chart on the tab below for tolerance details.
In Stock
Dimensional Chart
Item Details
Dimensional Chart
Click the part number in the chart below to view that specific pad in our store.
Dimensions mm (inches)
Part No. | Surface | Length A** mm (inch) | Width B** mm (inch) | Overall Thickness C mm (inch) | Pad Thickness D mm (inch) | Plate Thickness E mm (inch) | Durometer*** ±5 Shore A | Elastomer*** | Plate Material*** |
---|---|---|---|---|---|---|---|---|---|
GP-702-1A-1.2-1.2 | Knurled | 30.48 (1.2) | 30.48 (1.2) | 13.5 (0.53) | 10.2 (0.40) | 3.3 (0.13) | 60 | NBR-BunaN (Black) | Carbon Steel |
GP-702-1A-6.0-12.0 | Knurled | 304.8 (12.0) | 152.4 (6.0) | 13.5 (0.53) | 10.2 (0.40) | 3.3 (0.13) | 60 | NBR-BunaN (Black) | Carbon Steel |
GP-704-1A-1.2-1.2 | Knurled | 30.48 (1.2) | 30.48 (1.2) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 60 | NBR-BunaN (Black) | Aluminum |

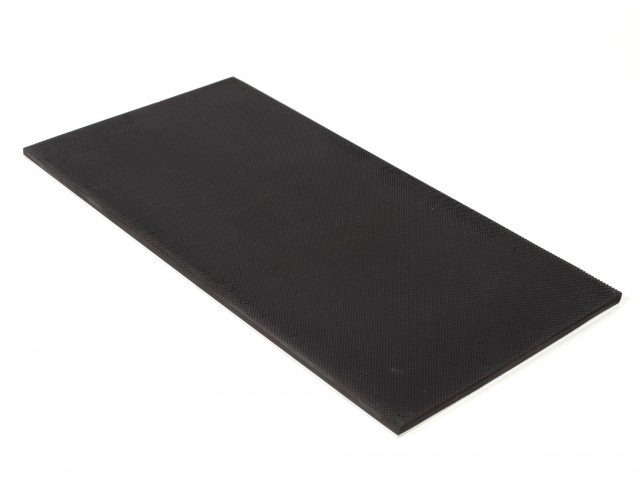

GP-704-1A-6.0-12.0 | Knurled | 304.8 (12.0) | 152.4 (6.0) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 60 | NBR-BunaN (Black) | Aluminum |

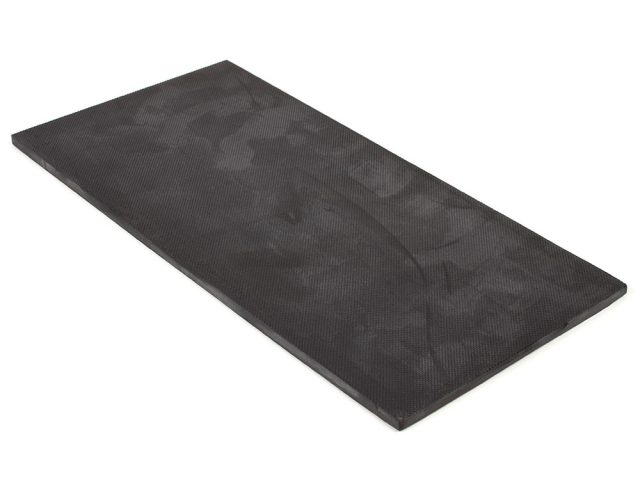

GP-706-1A-6.0-12.0* | Knurled | 304.8 (12.0) | 152.4 (6.0) | – | 6.4 (0.25) | – | 60 | NBR-BunaN (Black) | Elastomer Only** |

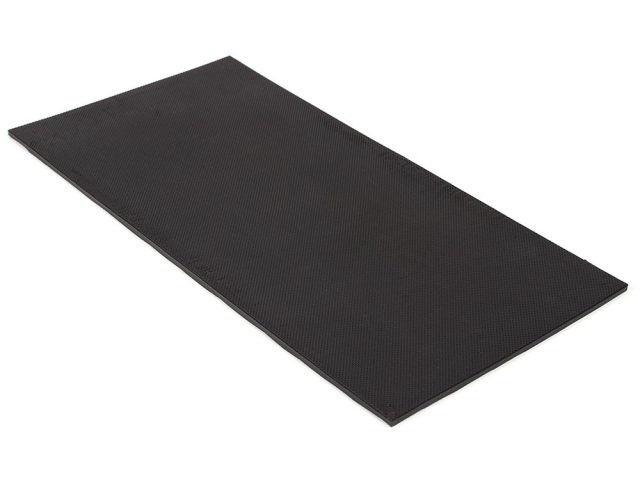

GP-706-2A-6.0-12.0* | Knurled | 304.8 (12.0) | 152.4 (6.0) | – | 3.3 (0.13) | – | 60 | NBR-BunaN (Black) | Elastomer Only** |
GP-154-1A-1.2-1.2 | Knurled | 30.48 (1.2) | 30.48 (1.2) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 50 | SI-Silicone (Blue) | Aluminum |
GP-154-1A-6.0-12.0 | Knurled | 304.8 (12.0) | 152.4 (6.0) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 50 | SI-Silicone (Blue) | Aluminum |
GP-334-1A-1.2-1.2 | Knurled | 30.48 (1.2) | 30.48 (1.2) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 30 | CR-Neoprene (Brown) | Aluminum |
GP-334-1A-6.0-12.0 | Knurled | 304.8 (12.0) | 152.4 (6.0) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 30 | CR-Neoprene (Brown) | Aluminum |
GP-574-1A-1.2-1.2 | Knurled | 30.48 (1.2) | 30.48 (1.2) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 70 | FKM-Viton® (Orange) | Aluminum |
GP-574-1A-6.0-12.0 | Knurled | 304.8 (12.0) | 152.4 (6.0) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 70 | FKM-Viton® (Orange) | Aluminum |
GP-578-1A-1.2-1.2 | Knurled | 30.48 (1.2) | 30.48 (1.2) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 70 | FKM-Viton® (Orange) | 316 Stainless |
GP-578-1A-6.0-12.0 | Knurled | 304.8 (12.0) | 152.4 (6.0) | 13.5 (0.53) | 10.2 (0.40) | 3.3 (0.13) | 70 | FKM-Viton® (Orange) | 316 Stainless |
GP-742-1A-1.2-1.2 | Knurled | 304.8 (12.0) | 152.4 (6.0) | 13.5 (0.53) | 10.2 (0.40) | 3.3 (0.13) | 45 | NBR-BunaN (Black) | Carbon Steel |
GP-742-1A-6.0-12.0 | Knurled | 304.8 (12.0) | 152.4 (6.0) | 13.5 (0.53) | 10.2 (0.40) | 3.3 (0.13) | 45 | NBR-BunaN (Black) | Carbon Steel |
GP-744-1A-1.2-1.2 | Knurled | 30.48 (1.2) | 30.48 (1.2) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 45 | NBR-BunaN (Black) | Aluminum |
GP-744-1A-6.0-12.0 | Knurled | 304.8 (12.0) | 152.4 (6.0) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 45 | NBR-BunaN (Black) | Aluminum |
GP-701-1-1.2-1.2 | Waffled | 30.48 (1.2) | 30.48 (1.2) | 13.5 (0.50) | 10.2 (0.37) | 3.3 (0.13) | 60 | NBR-BunaN (Black) | Carbon Steel |
GP-701-1-6.0-12.0 | Waffled | 304.8 (12.0) | 152.4 (6.0) | 12.7 (0.50) | 9.4 (0.37) | 3.3 (0.13) | 60 | NBR-BunaN (Black) | Carbon Steel |
GP-703-1-1.2-1.2 | Waffled | 30.48 (1.2) | 30.48 (1.2) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 60 | NBR-BunaN (Black) | Aluminum |
GP-703-1-6.0-12.0 | Waffled | 304.8 (12.0) | 152.4 (6.0) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 60 | NBR-BunaN (Black) | Aluminum |
GP-705-1-6.0-12.0* | Waffled | 304.8 (12.0) | 152.4 (6.0) | – | 6.4 (0.25) | – | 60 | NBR-BunaN (Black) | Elastomer Only** |
GP-733-1-1.2-1.2 | Waffled | 30.48 (1.2) | 30.48 (1.2) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 35 | NBR-BunaN (Black) | Aluminum |
GP-733-1-6.0-12.0 | Waffled | 304.8 (12.0) | 152.4 (6.0) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 35 | NBR-BunaN (Black) | Aluminum |

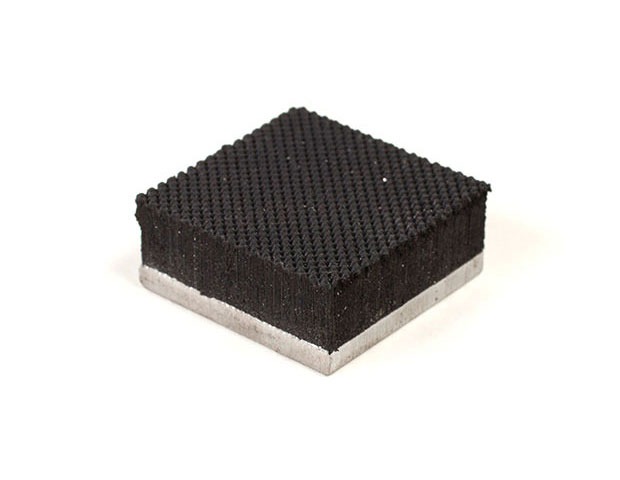

GP-801-1-1.2-1.2 | Pebbled | 30.48 (1.2) | 30.48 (1.2) | 13.5 (0.53) | 10.2 (0.40) | 3.3 (0.13) | 60 | NBR-BunaN (Black) | Carbon Steel |
GP-801-1-6.0-12.0 | Pebbled | 304.8 (12.0) | 152.4 (6.0) | 13.5 (0.53) | 10.2 (0.40) | 3.3 (0.13) | 60 | NBR-BunaN (Black) | Carbon Steel |
GP-803-1-1.2-1.2 | Pebbled | 30.48 (1.2) | 30.48 (1.2) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 60 | NBR-BunaN (Black) | Aluminum |
GP-803-1-6.0-12.0 | Pebbled | 304.8 (12.0) | 152.4 (6.0) | 6.4 (0.25) | 4.8 (0.19) | 1.5 (0.06) | 60 | NBR-BunaN (Black) | Aluminum |
GP-805-1-6.0-12.0* | Pebbled | 304.8 (12.0) | 152.4 (6.0) | – | 6.4 (0.25) | – | 60 | NBR-BunaN (Black) | Elastomer Only** |
GP-805-2-6.0-12.0* | Pebbled | 304.8 (12.0) | 152.4 (6.0) | – | 3.3 (0.13) | – | 60 | NBR-BunaN (Black) | Elastomer Only** |
*No metal plate **Elastomer only pads may show some dimensional contraction. Use A=11-5/8” and B=5-3/4” actual for planning on 6” x 12” pads and assume nominal A & B dimensions for all metal backed pads (+.050/- .090”), nominal thickness (+/-.050”), and nominal squareness for smaller sizes as these are cut from standard nominal 6” x 12” pads. For custom machined sizes and make to print items, contact PFA. ***Durometer specifications are nominal +/- 5 to +/- 10 Shore A as shown. Durometers are rounded from actual on various materials – consult PFA for more specific durometer information. Polymer Type Abbreviations: CR = Neoprene (Chloroprene), NBR = Nitrile Butadiene Rubber (Buna-N), FKM = (Also FPM) High Temperature Fluoropolymer (Viton®), SI = Silicone (Polysiloxane), backing plate material is Aluminum (6061-T6), low carbon steel (10 gauge), or 316 Stainless Steel (or similar). |
